10: Navigating
Localization and Navigation are the core of mobile robotics!

Localization

  • How does the Robot “know” where it is?
  • How does it determine it’s “pose”?
  • Relative to a coordiante system
  • Could be GPS coordinates
  • But more likely coordiantes of a given map
Localizing the Robot on a map
  • Key package is called amcl - Adaptive Monte Carlo Localization
  • It’s a deep theoretical area covered in Probabilistic Robotics by Sebsastian Thrun, et al
How it works at a high level
  • Location of robot is its pose
  • Always known with respect to a map coordinate frame (also called sometimes the world coordinate frame)
  • amcl maintains a set of candidate poses plus a probability that they reflect reality
  • As robot moves, actual sensor readings are compared with expected sensor readings for each pose, and the probability of each candidate pose can be updated.
  • Low probability poses are discarded, and high probability poses are updated based on odometry, scan, and probability.
  • For path planning purposes the highest probability pose is used.
  • It is definitely a guess not a certainty.
Simulating localization
  • We will rebuild the map here to make sure things are consistent
  • A new wrinkle here is the use of turtlebot3_simulation which will take the place of teleop
  • That node drives the robot around ranomly while gmapping is building the map
  • After some time has gone by, save the map.
NB Be careful with the filenames of the map. You will get strange errors if the file name given to turtlebot3_navigation is incorrect or not resolvable!

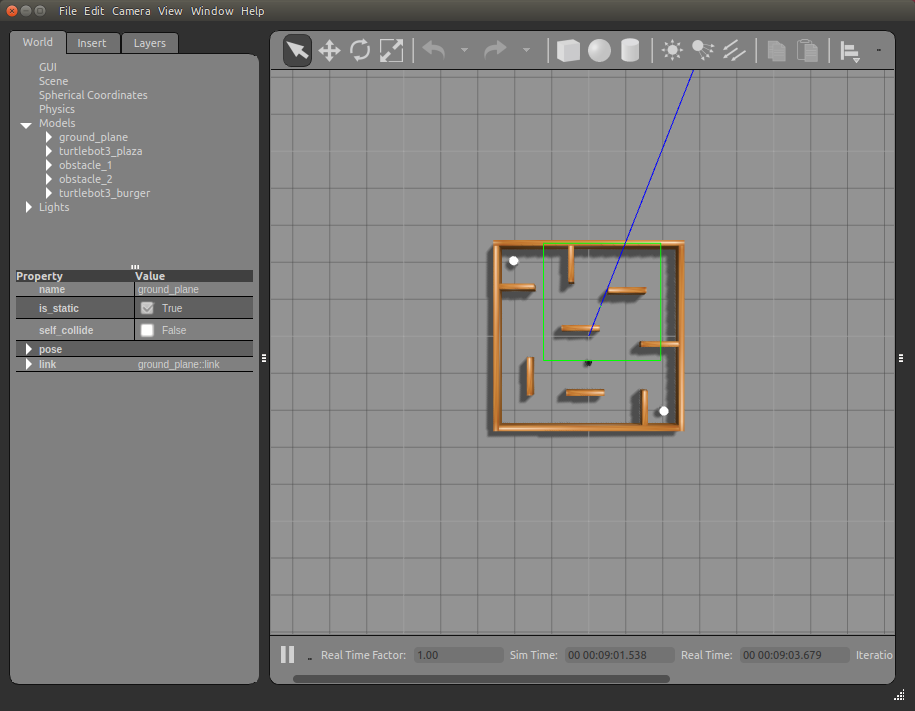

$ roslaunch turtlebot3_gazebo turtlebot3_stage_4.launch
$ roslaunch turtlebot3_gazebo turtlebot3_simulation.launch
$ roslaunch turtlebot3_slam turtlebot3_slam.launch slam_methods:=gmapping
$ cd ~
$ rosrun map_server map_saver -f stage4
  • The ROS nav stack is another complex bit of computer science and engineering
  • For now we are going to just scratch the surface
  • Inputs are a map, an estiamted current position, scanner inforamtion, and a destinaion
  • Behavior is to generate a path and steer the robot to it
  • Avoiding obstacles
  • Roughly:
    1. navigation goal is sent to the nav stack. This is done with an action call with a goal of MoveBaseGoal which specifies a target pose and a coordinate frame (called the map frame.)
    2. Nav stack uses a path-planning algorithm in the global plannner to create shortest path route
    3. Local planner drives along that path, while using sensor information to aboid obstacles.
    4. When the robot arrives at the goal pose the action terminates.
  • Lets try it!
# Now, close all the exiting ROS nodes down and next run this. Be careful with the
# file names because the yaml file contains a file name too and it is easy to
# get things misaligned.

$ roslaunch turtlebot3_navigation turtlebot3_navigation.launch map_file:=stage4.yaml

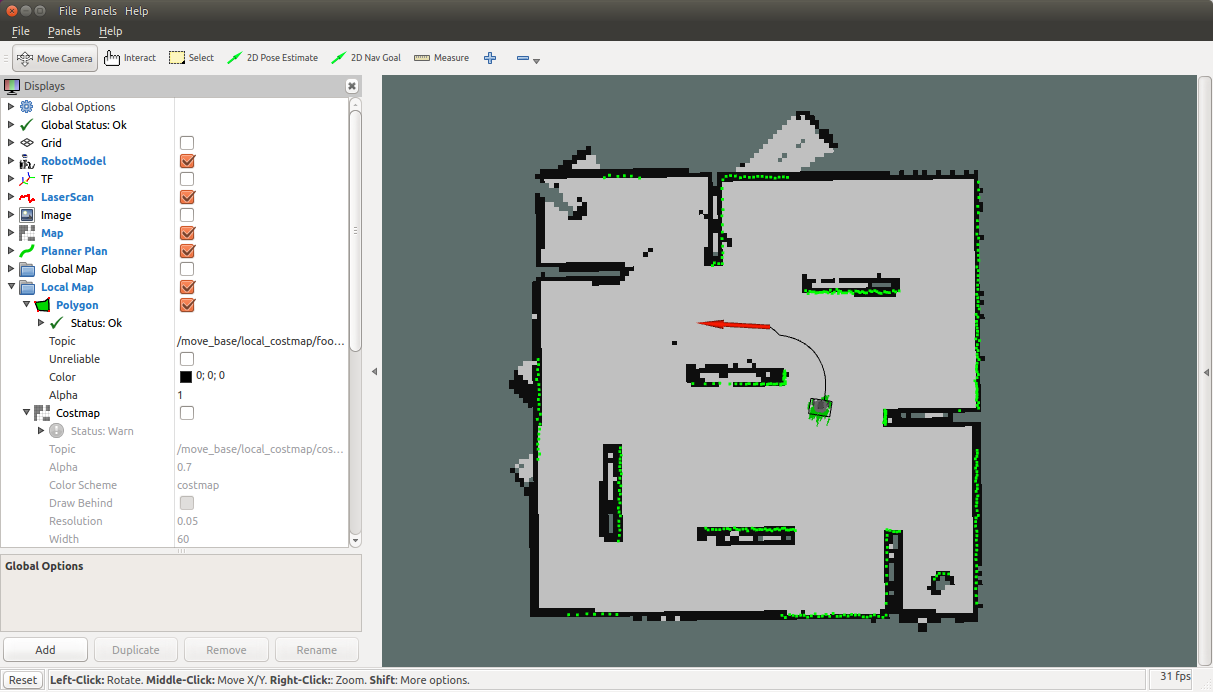

  • Give the robot a navigation goal by clicking the button in rviz
  • Play around and see the robot solve the simple maze navigation including places it can’t ‘see’ from where it is
AMCL

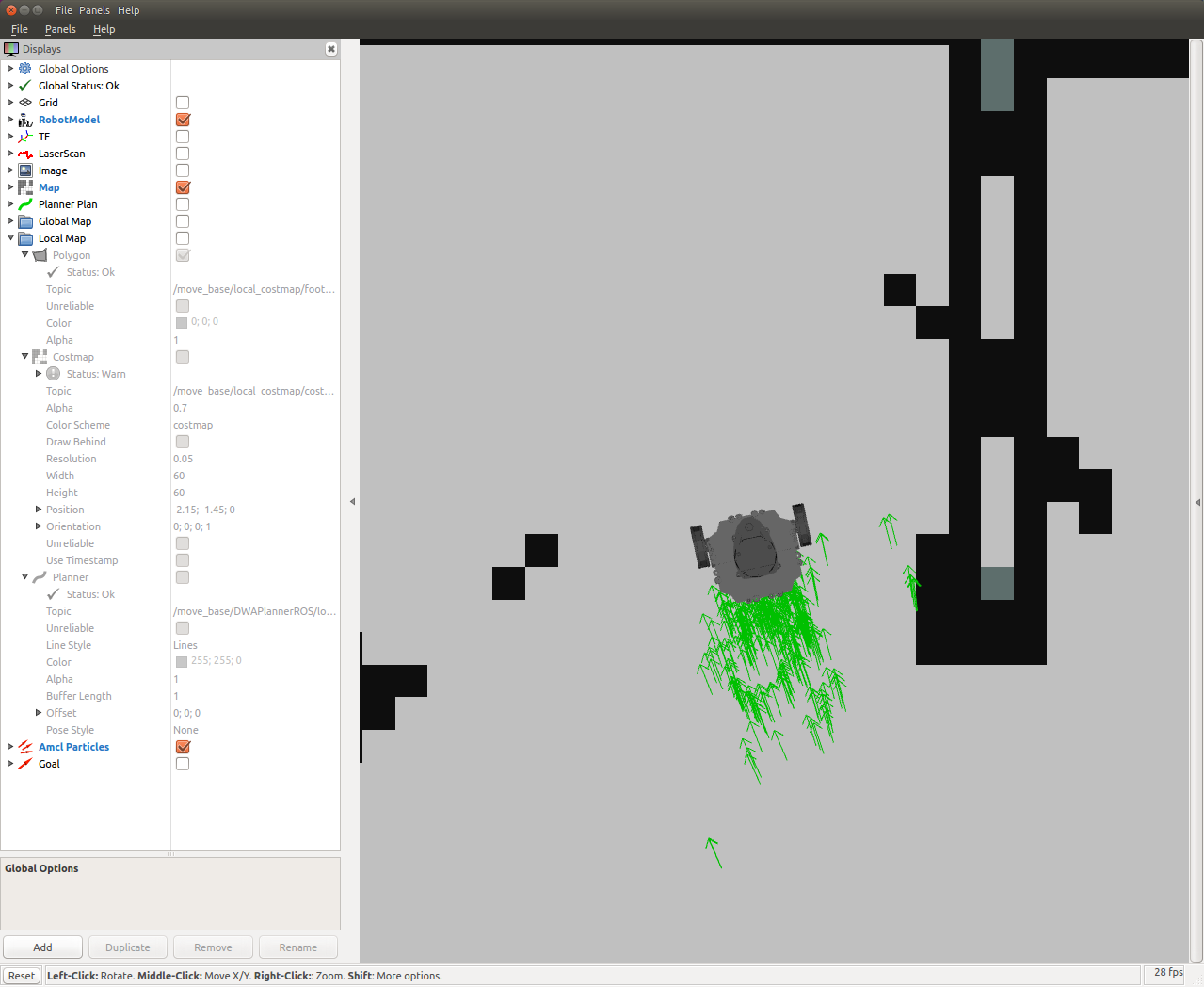

  • Uncheck everything except RobotModel, Map and ParticleCloud in rViz.
  • The green arrows are the pose estimates from amcl
  • Tell amcl that the robot is somewhere else, and you see it do its best on guessing the pose
  • Do this with the 2d pose estimate command
  • Turn on the Lasert Scan display
  • Play with the 2d pose estimate command and observe how the map becomes aligned
Behind the scenes
  • amcl subscribes to a topic geometry_msgs/PoseWith
  • rviz command 2d pose estimate publishes the new proposed pose on that topic
  • When amcl receives that message it resets its collection of candidate poses
Going inside the Nav Stack

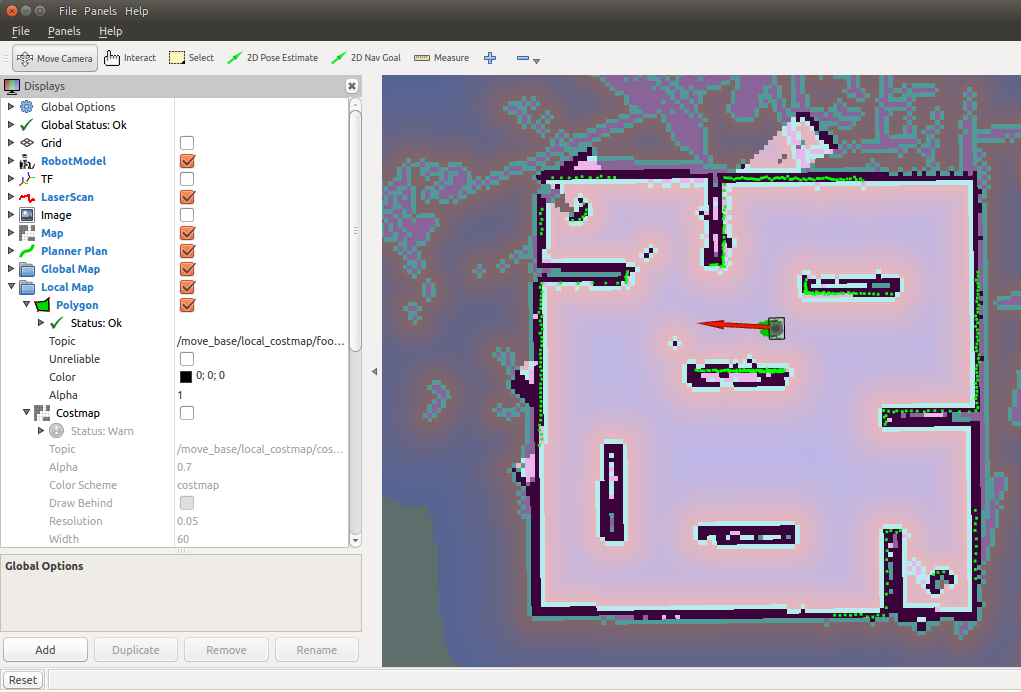

  • Global planner: works out best path assuming map is accurate global costmap: How safe or unsafe is each spot on the map
    • Published on /move_base/global_costmap/costmap
    • Planner view shows what the planned path to the nav goal is
  • Local Planner:
    • Adjusts the global plan based on newly detected obstacles
    • Map shows square area around robot with further analysis
    • Color shows safe areas in cold colors (like blue) and dangerous areas in warm colors (like red)
  • Look at patrol.py
  • It is a SimpleActionClient which sends a repeating sequence of two Action Goals to move_base
  • There’s nothing tricky about itself.
  • The challenge might be getting all the other bits set up so that it will work correctly
